• Durabed, pickup bed
• Push Button Start
• Air filter, heavy-duty
• Air filtration monitoring
• Transfer case, two-speed electronic shift with push button controls (Requires 4WD models.)
• Auto-locking rear differential
• Four wheel drive
• Frame, fully-boxed, hydroformed front section and a fully-boxed stamped rear section
• Recovery hooks, front, frame-mounted, Black
• Suspension Package
• Steering, Recirculating Ball with smart flow power steering system
• Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
• Brake lining wear indicator
• Exhaust, single, side

• Wheels, 17" (43.2 cm) painted steel, Silver
• Tires, LT245/75R17E all-season, blackwall
• Tire, spare LT245/75R17E all-season, blackwall (Included and only available with (QHQ) LT245/75R17E all-season, blackwall tires with (E63) Durabed, pickup bed. Available to order when (ZW9) pickup bed delete and (QHQ) LT245/75R17E all-season, blackwall tires are ordered.)
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Deleted with (ZW9) pickup bed delete.)
• Bumpers, front, Black
• Bumpers, rear, Black
• CornerStep, rear bumper
• BedStep, Black integrated on forward portion of bed on driver and passenger side (Deleted when (ZW9) pickup bed delete is ordered.)
• Moldings, beltline, Black
• Cargo tie downs (12), fixed rated at 500 lbs per corner (Deleted with (ZW9) pickup bed delete.)
• Headlamps, halogen reflector with halogen Daytime Running Lamps
• IntelliBeam, automatic high beam on/off
• Taillamps with incandescent tail, stop and reverse lights
• Lamps, cargo area, cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel
• Mirrors, outside high-visibility vertical trailering lower convex mirrors, manual-folding/extending (extends 3.31" [84.25mm]), molded in Black (Not included on Regular Cab models.)
• Mirror caps, Black
• Glass, solar absorbing, tinted
• Tailgate, standard (Deleted with (ZW9) pickup bed delete.)
• Tailgate and bed rail protection cap, top
• Tailgate, locking, utilizes same key as ignition and door (Upgraded to (QT5) EZ Lift power lock and release tailgate when (PCV) WT Convenience Package is ordered. Not available with (ZW9) pickup bed delete.) (Upgraded to (QT5) EZ Lift power lock and release tailgate when (PCV) WT Convenience Package or (ZLQ) WT Fleet Convenience Package is ordered. Not available with (ZW9) pickup bed delete.)
• Tailgate, gate function manual, no EZ Lift (Deleted with (ZW9) pickup bed delete.)
• Door handles, Black grained

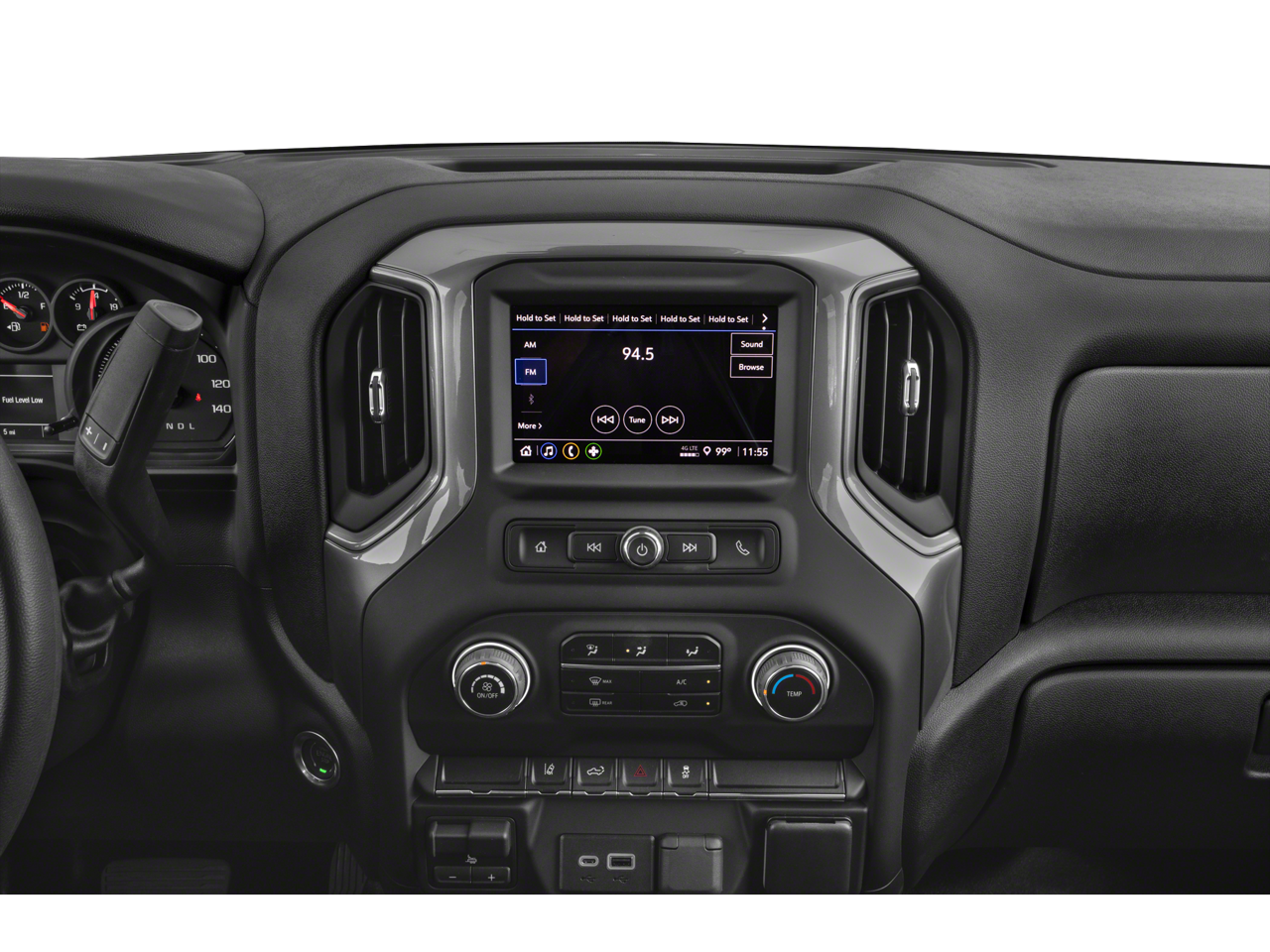

• Audio system, Chevrolet Infotainment 3 system 7" diagonal HD color touchscreen, AM/FM stereo, Bluetooth audio streaming for 2 active devices, voice command pass-through to phone, Wireless Apple CarPlay and Wireless Android Auto compatibility
• Audio system feature, 6-speaker system (Requires Crew Cab or Double Cab model.)
• Wireless phone projection for Apple CarPlay and Android Auto
• Bluetooth for phone connectivity to vehicle infotainment system
• Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)

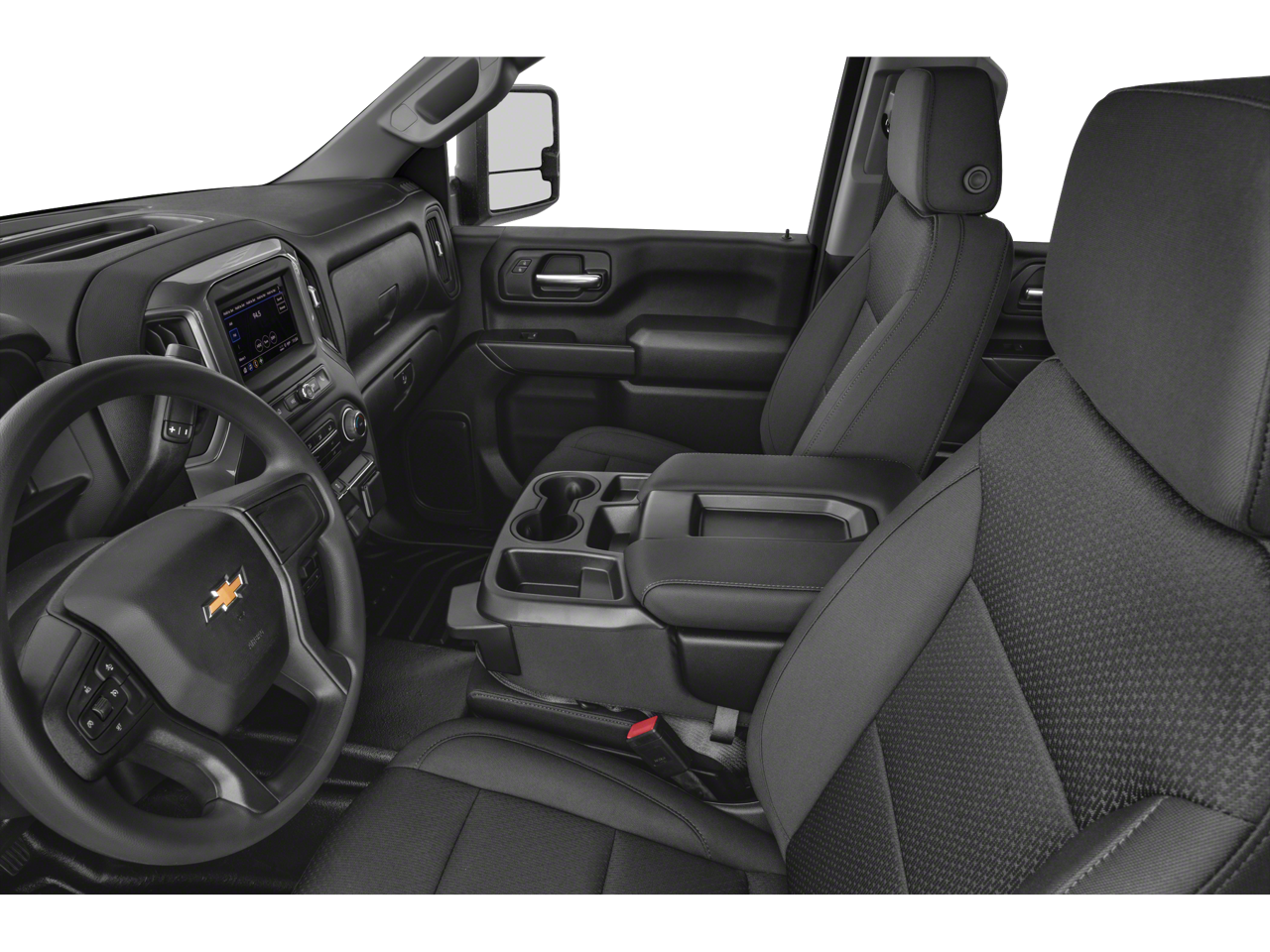

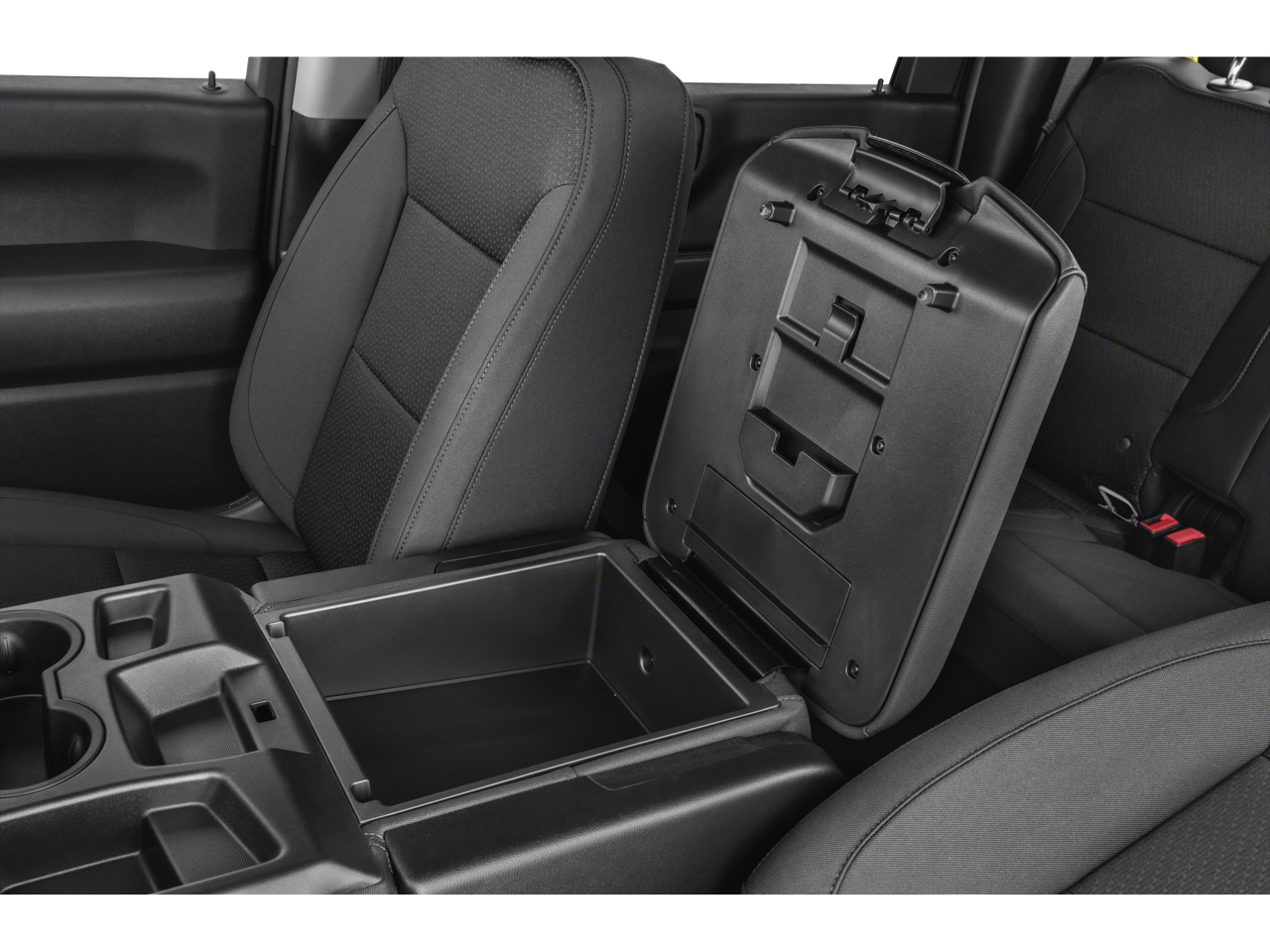

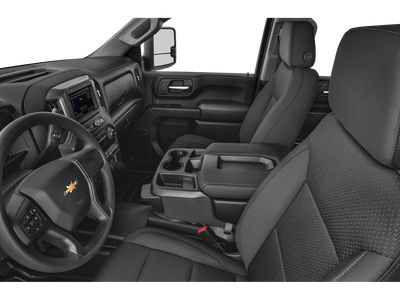

• Seats, front 40/20/40 split-bench with covered armrest storage and under-seat storage (lockable)
• Vinyl seat trim
• Seat adjuster, driver 4-way manual
• Seat adjuster, passenger 4-way manual

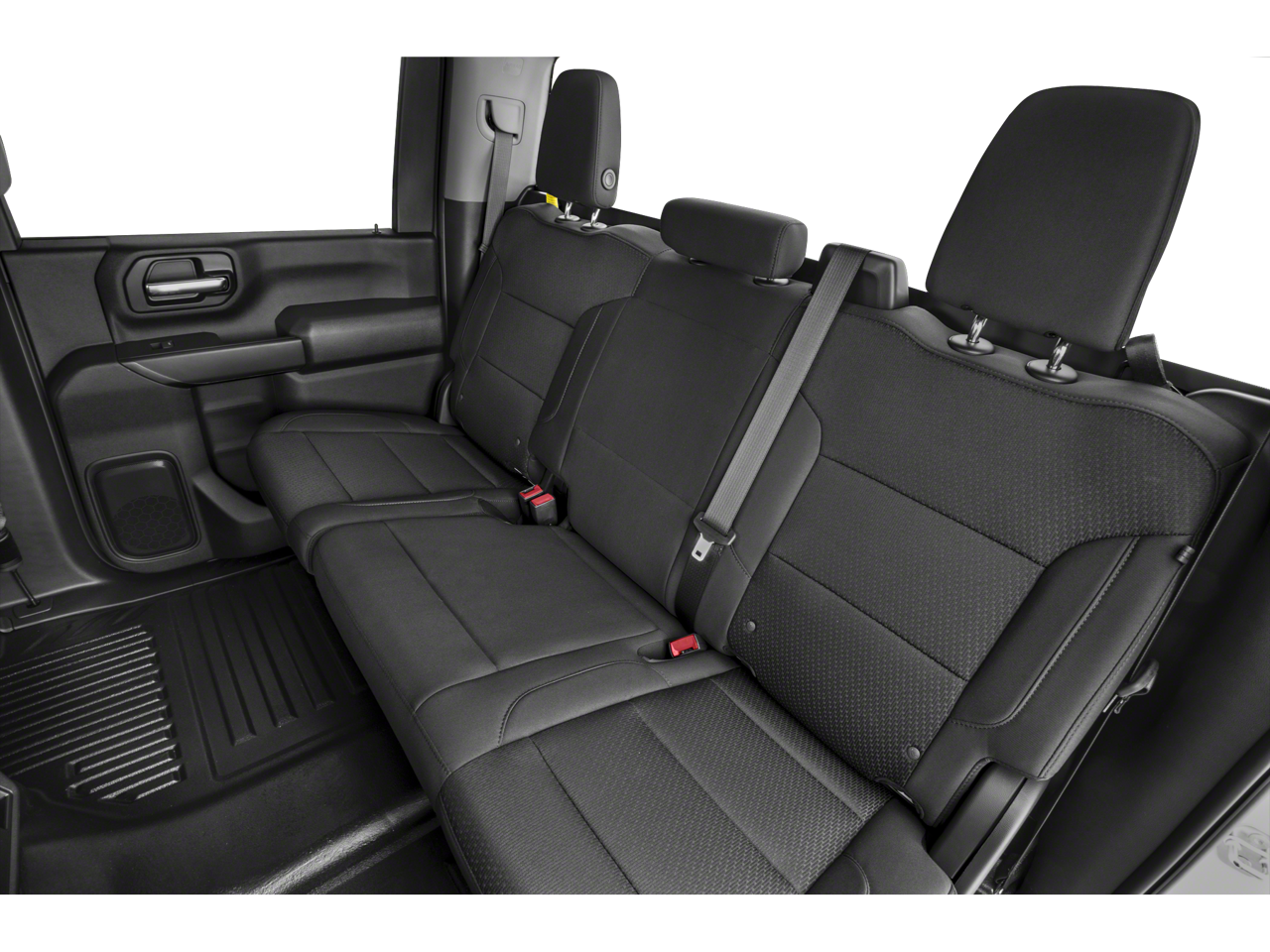

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor) (Requires Crew Cab or Double Cab model.)
• Floor covering, rubberized-vinyl (Not available with LPO floor liners.)
• Steering wheel, urethane
• Driver Information Center, 3.5" diagonal monochromatic display
• Exterior Temperature Display located in radio display
• Compass located in instrument cluster
• Rear Seat Reminder (Requires Crew Cab or Double Cab model.)
• Window, power front, drivers express up/down
• Window, power front, passenger express down
• Windows, power rear, express down (Not available with Regular Cab models.)
• Door locks, power
• Remote Keyless Entry with 2 transmitters
• USB Ports, 2, Charge/Data ports located on instrument panel
• Power outlet, front auxiliary, 12-volt
• Air conditioning, single-zone
• Air vents, rear, heating/cooling (Not available on Regular Cab models.)
• Mirror, inside rearview, manual tilt
• Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted
• Chevrolet Connected Access capable (Subject to terms. See onstar.com or dealer for details.)

• Automatic Emergency Braking
• Front Pedestrian Braking
• StabiliTrak stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar and Chevrolet connected services capable (Terms and limitations apply. See onstar.com or dealer for details.)
• HD Rear Vision Camera (Deleted when (ZW9) pickup bed delete is ordered.)
• Hitch Guidance dynamic single line to aid in trailer alignment for hitching (Deleted with (ZW9) pickup bed delete.)
• Lane Departure Warning
• Following Distance Indicator
• Forward Collision Alert
• Seat Belt Adjustable Guide Loops, front row only (Included and only available on Crew Cab and Double Cab models.)
• Buckle to Drive prevents vehicle from being shifted out of Park until driver seat belt is fastened; times out after 20 seconds and encourages seat belt use, can be turned on and off in Settings menu
• Rear Seat Belt Indicator (Requires Crew Cab or Double Cab model.)
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System
• 3 Years of Remote Access. The Remote Access Plan gives you simplified remote control of your properly equipped vehicle and unlocks a variety of great features in your myChevrolet mobile app. See dealer for details. (Remote Access Plan does not include emergency or security services. See onstar.com for details and limitations. Available on select Apple and Android devices. Service availability, features and functionality vary by vehicle, device, and the plan you are enrolled in. Terms apply. Device data connection required.)

• Trailering Information Label provides max trailer ratings for tongue weight, conventional, gooseneck and 5th wheel trailering (Not available with (ZW9) pickup bed delete.)

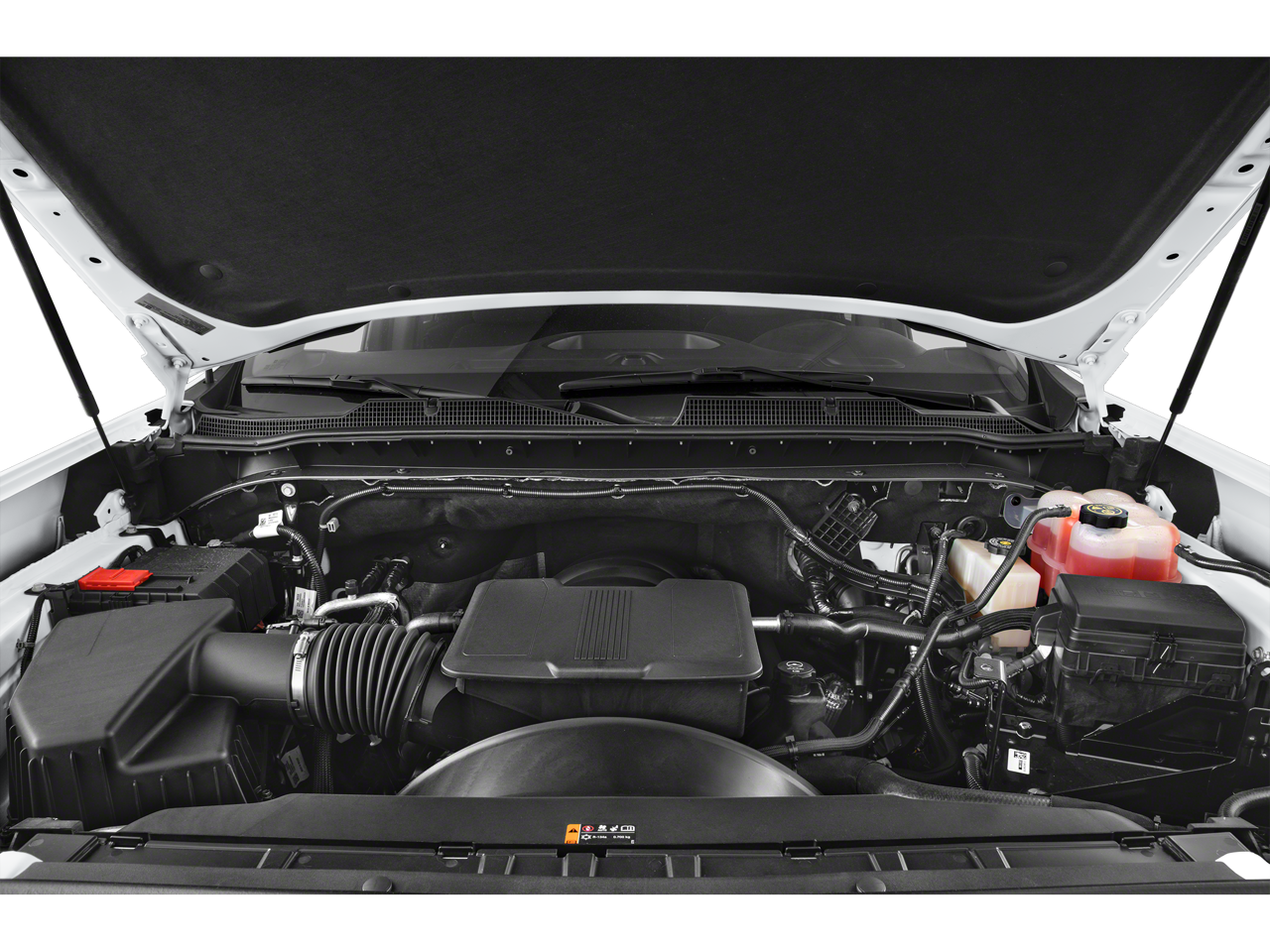

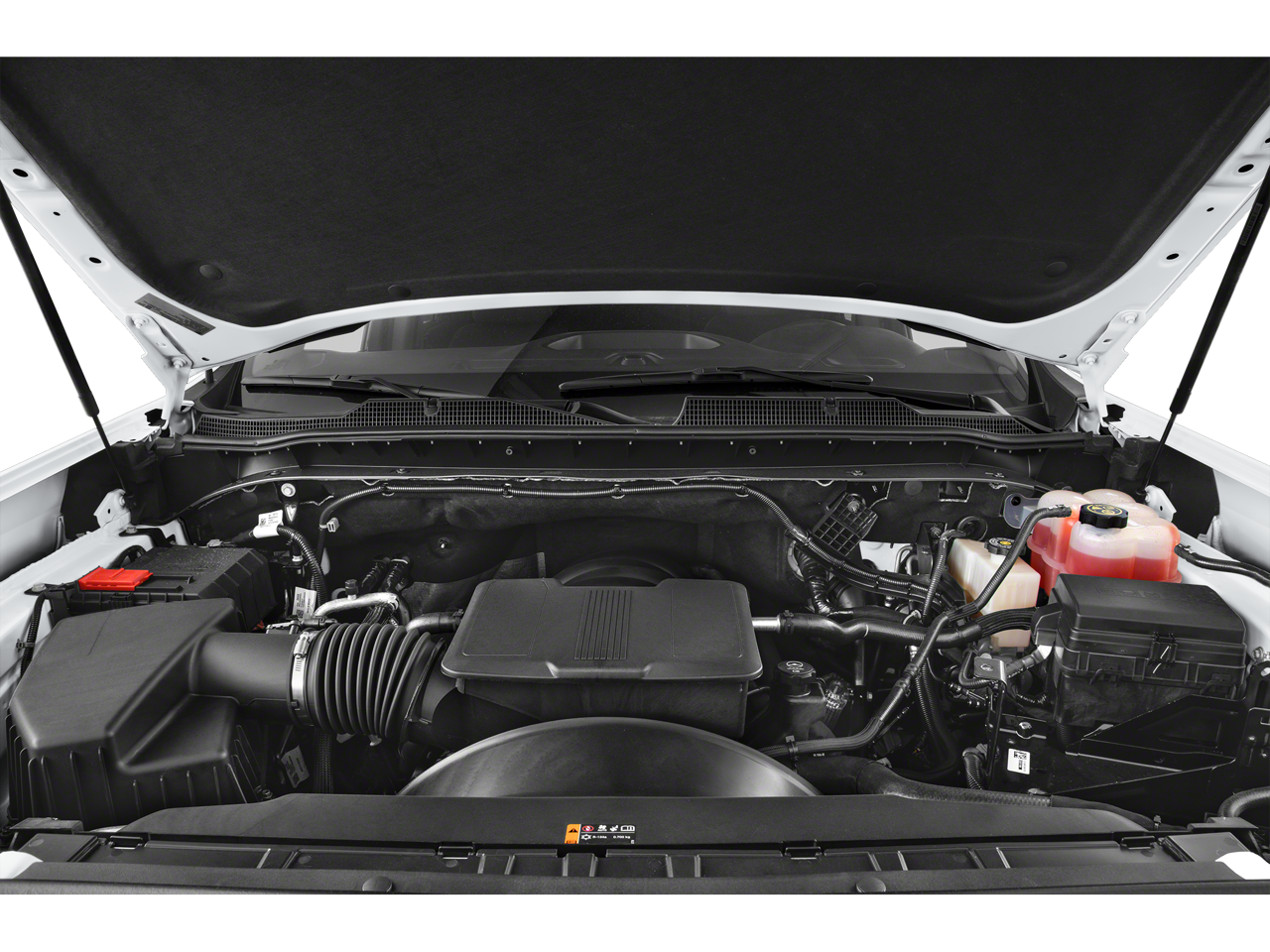

ENGINE, 6.6L V8

• with Direct Injection and Variable Valve Timing
• gasoline
• (401 hp [299 kW] @ 5200 rpm
• 464 lb-ft of torque [629 N-m] @ 4000 rpm) (STD)

WT CONVENIENCE PACKAGE

• includes (QT5) EZ Lift power lock and release tailgate
• (AKO) tinted windows
• (C49) rear-window defogger
• (K34) cruise control
• (DBG) power trailer mirrors with heated upper glass and manual extending/folding

SEATS, FRONT 40/20/40 SPLIT-BENCH

• with covered armrest storage and under-seat storage (lockable) (STD)

TIRE, SPARE LT245/75R17E ALL-SEASON, BLACKWALL

• (STD)

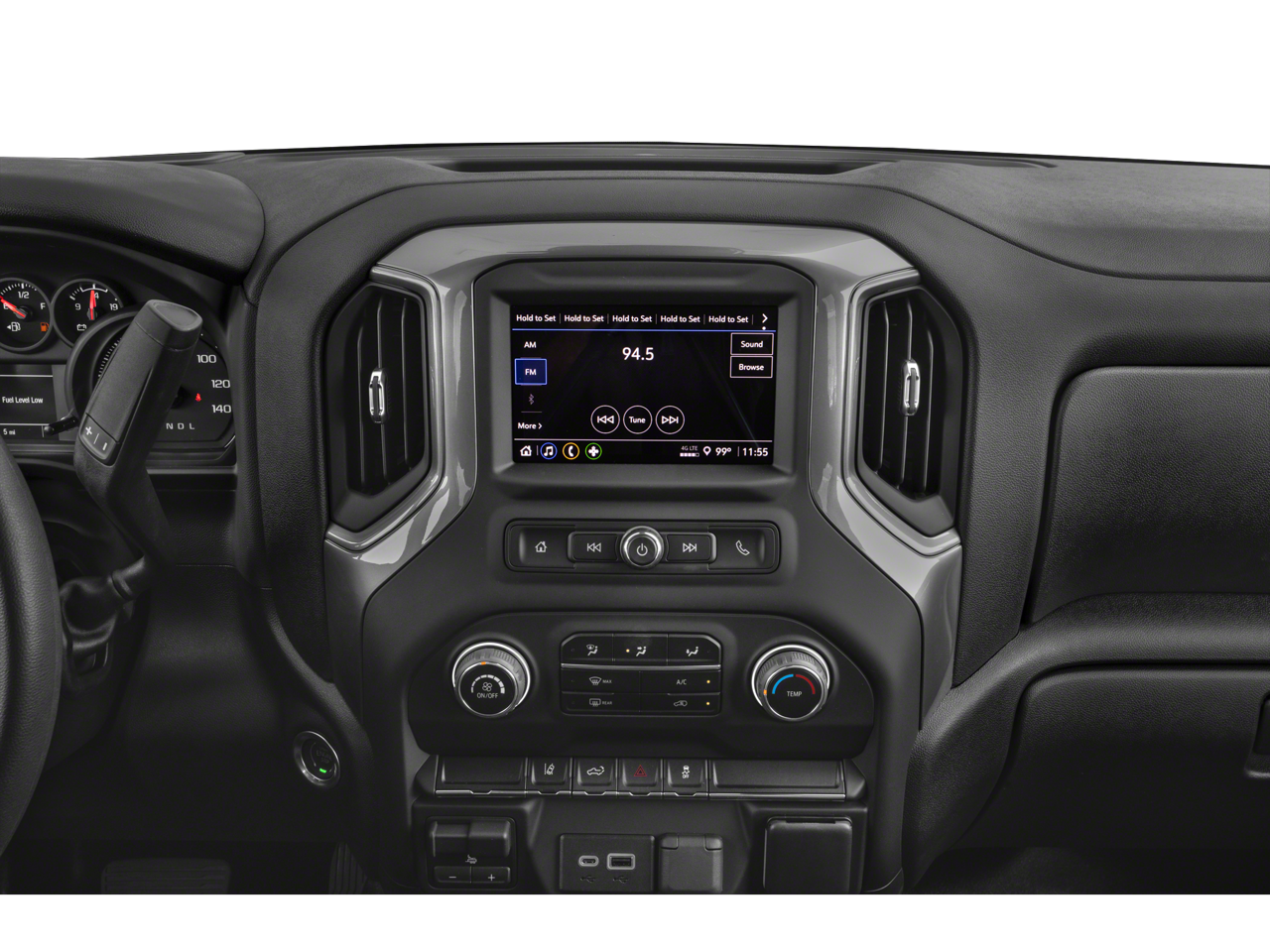

AUDIO SYSTEM, CHEVROLET INFOTAINMENT 3 SYSTEM

• 7" diagonal HD color touchscreen
• AM/FM stereo
• Bluetooth® audio streaming for 2 active devices
• voice command pass-through to phone
• Wireless Apple CarPlay and Wireless Android Auto compatibility (STD)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

SKID PLATES

• protect the oil pan
• front axle and transfer case

STEERING COLUMN, TILT-WHEEL, MANUAL

• with wheel locking security feature (Beginning February 27
• 2023 through June 4
• 2023
• certain vehicles will be forced to include (N37) manual tilt/telescoping steering column that will remove the (N33) Tilt-Wheel manual steering column. Does not include later dealer retrofit. See dealer for details or the window label for the features on a specific vehicle.)

SNOW PLOW PREP/CAMPER PACKAGE

• includes (KW5) 220-amp alternator
• includes increased front GAWR on Heavy Duty models
• (NZZ) skid plates (transfer case and oil pan)
• pass through dash grommet hole and roof emergency light provisions.

TRAILERING WIRING PROVISIONS

• for trailering
• 5th wheel and gooseneck trailer
• includes additional 7-way wiring harness located at the rear of the pickup bed attached to the rear frame cross member

TIRES, LT245/75R17E ALL-SEASON, BLACKWALL

• (STD)

CRUISE CONTROL, ELECTRONIC

• with set and resume speed
• steering wheel-mounted

GVWR, 10,450 LBS. (4740 KG)

• (STD)

WHEELS, 17" (43.2 CM) PAINTED STEEL, SILVER

• (STD)

TRANSMISSION, ALLISON 10-SPEED AUTOMATIC

• (STD)

• Preferred Equipment Group 1WT
• 3.73 Rear Axle Ratio
• Wheels: 17 Silver Painted Steel
• Front 40/20/40 Split-Bench Seats w/Lockable Storage
• Vinyl Seat Trim
• Suspension Package
• WT Convenience Package
• Radio: Chevrolet Infotainment 3 System
• Electronic Cruise Control w/Set & Resume Speed
• Electric Rear-Window Defogger
• Rubberized-Vinyl Floor Covering
• Deep-Tinted Glass
• Front License Plate Kit
• LED Smoked Amber Roof Marker Lamps
• Heated Power-Adjustable Outside Mirrors
• Durabed Pickup Bed
• EZ Lift Power Lock & Release Tailgate
• Snow Plow Prep/Camper Package
• 220 Amp Alternator
• Skid Plates
• Integrated Trailer Brake Controller
• 5th Wheel & Gooseneck Trailer Wiring Provisions
• Locking Tailgate
• Rear 60/40 Folding Bench Seat (Folds Up)
• Chevrolet Connected Access Capable
• Power Rear Windows w/Express Down
• Solar Absorbing Tinted Glass
• Power Door Locks
• Power Front Windows w/Driver Express Up/Down
• Bluetooth®Â For Phone
• Push Button Start
• Heated Vertical Trailering Mirrors
• High-Visibility Vertical Trailering Mirrors
• 170 Amp Alternator
• 720 Cold-Cranking Amps Heavy-Duty Battery
• Black Mirror Caps
• Manual Tilt-Wheel Steering Column
• 2-Speed Electronic Shift Transfer Case
• Wireless Phone Projection
• Standard Tailgate
• Manual Tailgate Function w/No EZ Lift
• 3.5 Diagonal Monochromatic Display DIC
• OnStar & Chevrolet Connected Services Capable
• 6-Speaker Audio System
• HD Rear Vision Camera
• Black Front Bumper
• Black Rear Bumper
• Wi-Fi Hotspot Capable
• 4-Wheel Disc Brakes
• Apple CarPlay/Android Auto
• Premium audio system: Chevrolet Infotainment 3
• Auto High-beam Headlights
• Front Center Armrest w/Storage
• Front beverage holders
• Variably intermittent wipers
• Traction control
• Tilt steering wheel
• Split folding rear seat
• Remote keyless entry
• Rear step bumper
• Rear reading lights
• Passenger vanity mirror
• Passenger door bin
• Panic alarm
• Overhead console
• Overhead airbag
• Outside temperature display
• Occupant sensing airbag
• Low tire pressure warning
• Illuminated entry
• Fully automatic headlights
• Front wheel independent suspension

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 220
• Maximum Alternator Capacity (amps): 170
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): - TBD -
• Gross Axle Wt Rating - Rear (lbs): - TBD -
• Curb Weight - Front (lbs): 4013
• Curb Weight - Rear (lbs): 2812
• Gross Vehicle Weight Rating Cap (lbs): 10450
• Gross Combined Wt Rating (lbs): 24500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 16000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1600
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 18400
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4600
• Maximum Trailering Capacity (lbs): 20000
• Suspension
• Suspension Type - Front: Short/Long Arm
• Suspension Type - Rear: Multi-Leaf Springs
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 51
• Shock Absorber Diameter - Rear (mm): 51
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.0 x 1.6
• Rear Brake Rotor Diam x Thickness (in): 14.1 x 1.3
• Tires
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QHQ
• Spare Tire Order Code: ZHQ
• Front Tire Size: LT245/75R17
• Rear Tire Size: LT245/75R17
• Spare Tire Size: LT245/75R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x - TBD -
• Rear Wheel Size (in): 17 x - TBD -
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 52.7
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 158.94
• Length, Overall (in): 250.04
• Width, Max w/o mirrors (in): 81.85
• Height, Overall (in): 79.82
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): 42.17
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.12
• Ground Clearance, Rear (in): 10.12
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 82.25
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 51.85
• Cargo Box (Area) Height (in): 21
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 69.5
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61.18
• Second Head Room (in): 40.12
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.3
• Second Hip Room (in): 60.24
• Summary

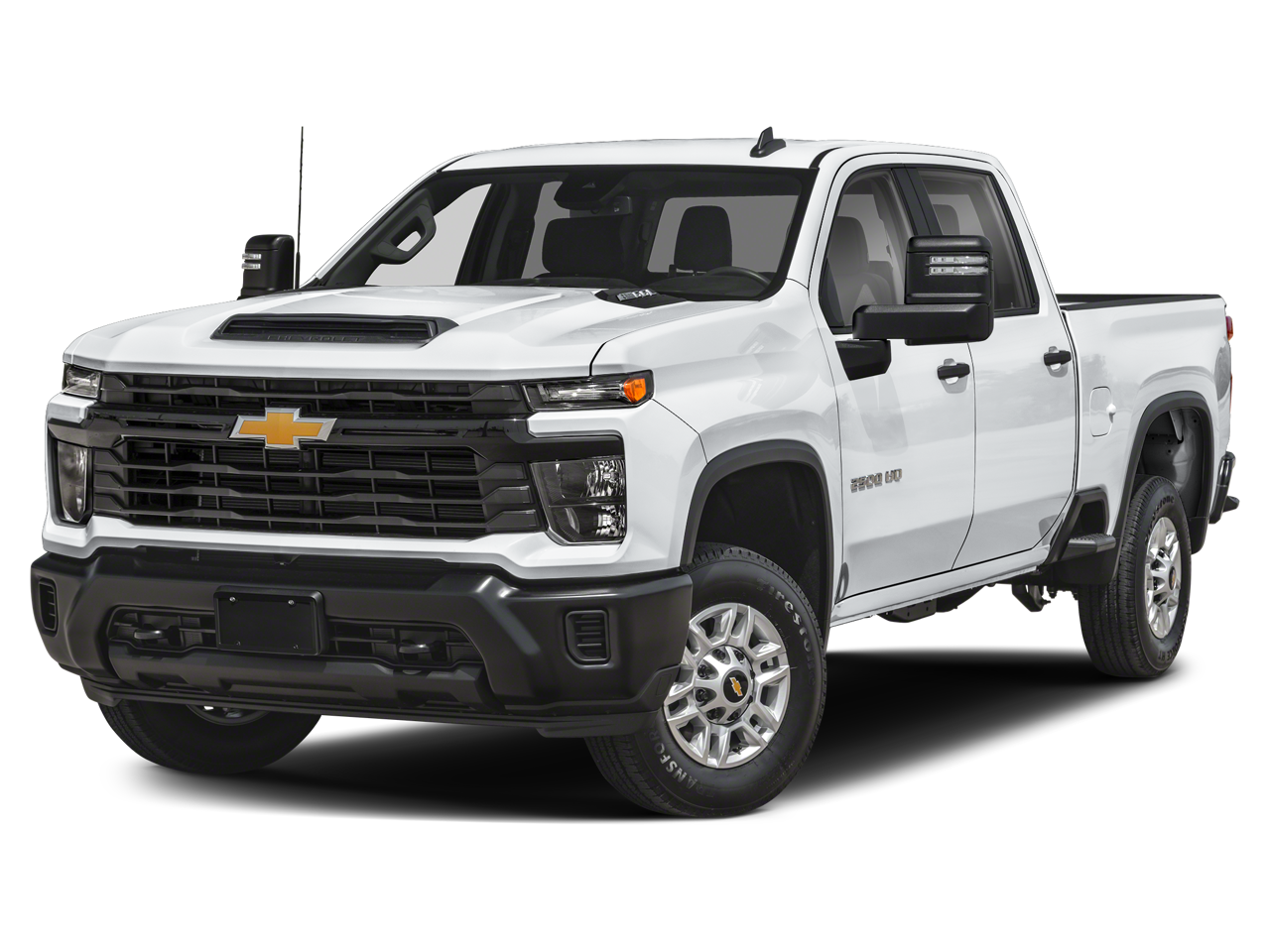

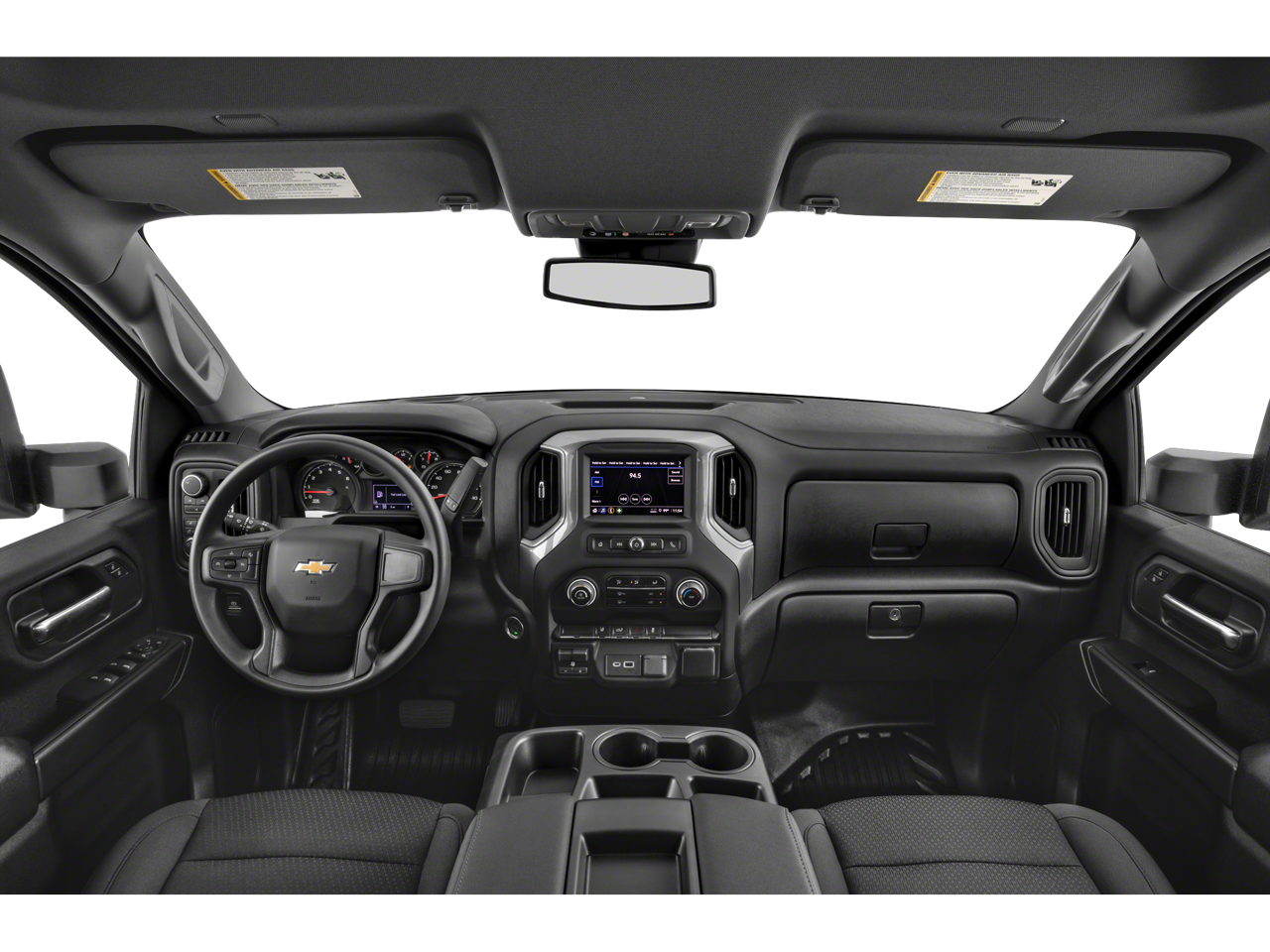

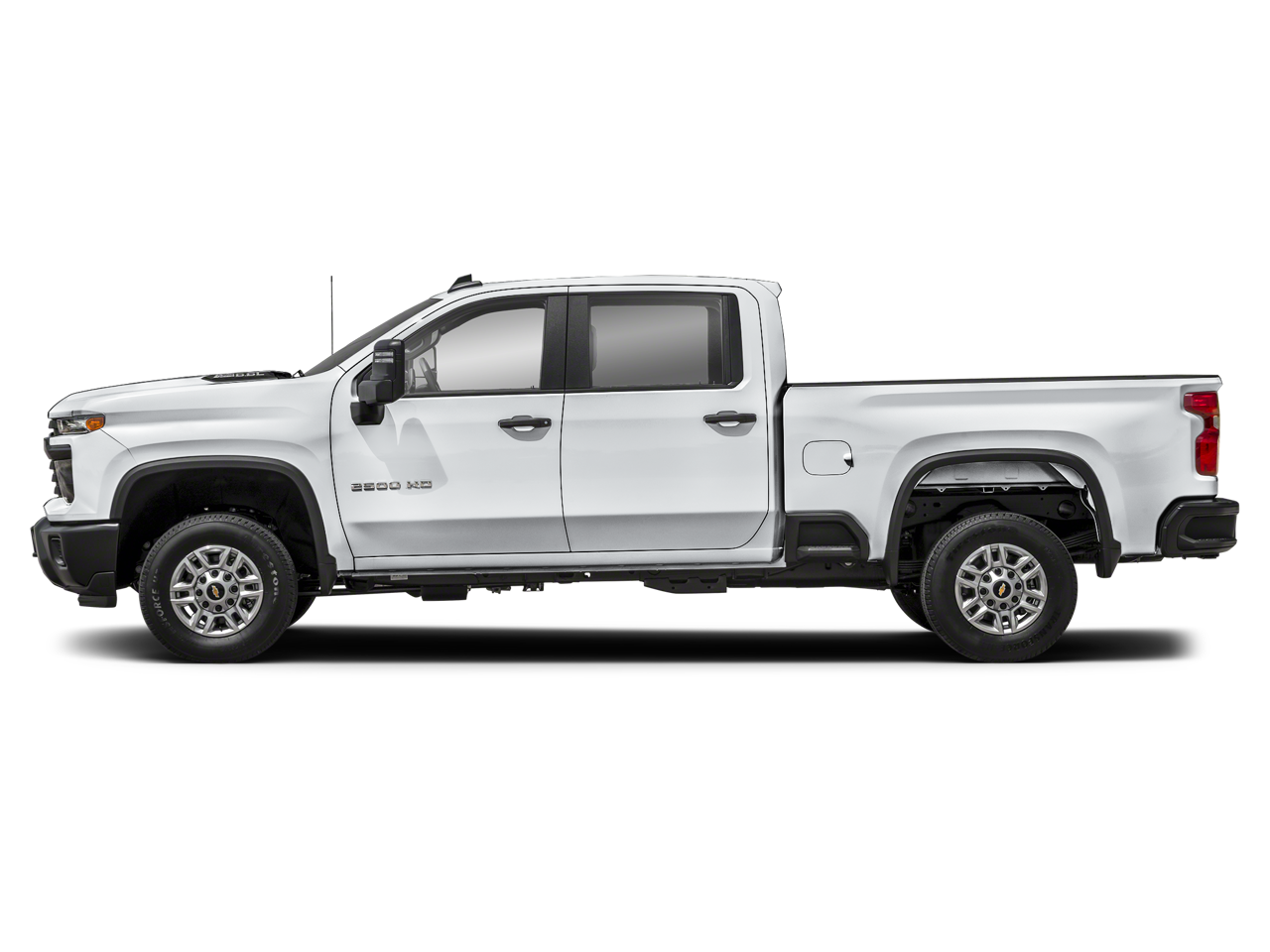

• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
